Building an MCP Server with Akka (Part 4)

Learn how to build production-ready MCP servers using Akka Java SDK with declarative annotations, built-in service discovery, and seamless agent integration.

Introduction

This is Part 4 of the Model Context Protocol series, focused on building an MCP server with Akka and wiring it into an agentic system.

In previous posts of this series , we explored the Model Context Protocol and also built an MCP server using .NET . Now, let’s explore a more enterprise-focused approach to building MCP servers using the Akka Java SDK, which brings distributed systems capabilities and production-grade features to MCP server development.

Akka’s MCP implementation stands out with its declarative annotation-based approach, built-in service discovery, and seamless integration with Akka’s agent system. This makes it particularly well-suited for building MCP servers that need to scale, integrate with existing microservices, or serve as tools for AI-powered agent workflows.

Note: The MCP annotations and HTTP endpoint used in this post are provided by an Akka Java SDK extension in the accompanying repositories. They are not part of the upstream Anthropic MCP reference SDKs. The endpoint implements JSON-RPC 2.0 semantics compatible with MCP clients.

What Makes Akka’s MCP Implementation Different?

Unlike the traditional MCP SDK implementations we’ve seen, Akka’s approach offers several unique advantages:

Declarative Tool Definition: Tools are defined using simple annotations (@McpTool, @McpResource) rather than manual registration
Built-in HTTP Server: Automatic HTTP/JSON-RPC endpoint exposure at /mcp
Service Discovery: Seamless integration with Akka’s service discovery for distributed deployments
Agent Integration: Direct consumption by Akka agents using RemoteMcpTools.fromService()
Production Ready: Built on Akka’s battle-tested distributed systems framework
Multi-Client Support: Serves both external MCP clients (Claude Desktop, VS Code) and internal Akka agents simultaneously

What You’ll Build

The Bigger Picture: Agentic AI Triage System

Imagine you’re running a production microservices platform with dozens of services. When an incident occurs - payment gateway timeouts, database connection failures, authentication errors - you need rapid, intelligent triage. This is where our Agentic AI Triage System comes in.

The complete triage system (available at agentic-triage-system ) is a production-ready multi-agent incident response platform that orchestrates six specialized AI agents:

ClassifierAgent: Classifies incidents by service, severity, and domain with confidence scores
EvidenceAgent: Gathers evidence from logs, metrics, and observability tools
TriageAgent: Performs systematic diagnosis using 5 Whys methodology and pattern analysis
KnowledgeBaseAgent: Searches runbooks and historical incident reports
RemediationAgent: Proposes staged remediation plans with rollback strategies
SummaryAgent: Generates multi-audience summaries (executive, technical, customer support)

The workflow orchestrates these agents in a systematic pipeline: classify → gather_evidence → triage → query_knowledge_base → remediate → summarize → finalize.

Where MCP Tools Fit In

Here’s the critical insight: The EvidenceAgent needs access to real-world observability data - logs from services, metrics from monitoring systems, correlation analysis across data sources. But we don’t want to hardcode integrations with Datadog, Elasticsearch, Splunk, or other tools directly into our agent logic.

This is where the Model Context Protocol shines. By exposing evidence gathering capabilities as MCP tools, we create a clean separation:

The Agent: Focuses on intelligent evidence collection strategy and analysis
The MCP Server: Handles the mechanics of fetching data from various sources

The EvidenceAgent connects to our MCP server using Akka’s native integration:

@Component(id = "evidence-agent")
public class EvidenceAgent extends Agent {
    public Effect<String> gather(Request req) {
        return effects()
            .model(ModelProvider.openAi().withModelName("gpt-4o-mini"))
            .mcpTools(
                RemoteMcpTools.fromService("evidence-tools")
                    .withAllowedToolNames("fetch_logs", "query_metrics", "correlate_evidence")
            )
            .systemMessage("You are an expert evidence collection agent...")
            .userMessage("Gather evidence for incident in " + req.service())
            .thenReply();
    }
}

When the AI model needs evidence, it can call these tools through the MCP protocol - completely abstracted from whether the data comes from local files, Datadog APIs, Elasticsearch queries, or SIEM systems.

What This Tutorial Builds

In this tutorial, we’ll build the Evidence Tools MCP Server that provides:

MCP Tools (Callable Functions):

fetch_logs: Retrieve service logs with automatic error analysis and anomaly detection
query_metrics: Query performance metrics (error rates, latency, throughput, resource utilization)
correlate_evidence: Analyze relationships between logs and metrics to identify patterns

MCP Resources (URI-based Data Access):

kb://runbooks/{serviceName}: Access troubleshooting runbooks and operational documentation

Infrastructure:

HTTP endpoint at /mcp with JSON-RPC 2.0 protocol
Akka service discovery integration for seamless agent connection
Support for external MCP clients (Claude Desktop, VS Code)

From Sample to Production

In this sample, we use file-based data sources (JSON files in src/main/resources/) to demonstrate the pattern. This makes the tutorial self-contained and easy to run locally without external dependencies.

In production, you would replace these file-based implementations with secure API integrations:

Datadog Integration: Replace fetch_logs with Datadog Logs API calls using API keys
Elasticsearch/OpenSearch: Query logs and traces using the Elasticsearch REST API
Prometheus/Grafana: Fetch metrics using PromQL queries
SIEM Systems: Integrate with Splunk, Sumo Logic, or Azure Sentinel for security events
APM Tools: Connect to New Relic, Dynatrace, or AppDynamics for application performance data
Cloud Provider APIs: AWS CloudWatch, Azure Monitor, GCP Cloud Logging

The beauty of the MCP architecture is that agents don’t need to change when you swap implementations. The tools maintain the same interface - same names, same parameters, same response structure - whether reading from files or calling production APIs.

Why Build These as MCP Servers?

Reusability: These tools can be used by any MCP client - not just our triage system
Isolation: Evidence gathering runs in its own service, with independent scaling and deployment
Security: Centralized access control to sensitive observability data and API credentials
Flexibility: Swap implementations (mock → staging → production) without changing agent code
Multi-Client: The same MCP server serves both Akka agents and external tools like Claude Desktop

Repositories:

This Tutorial: agenticai-triage-mcp-tools - MCP server for evidence gathering
Triage System: agentic-triage-system - Complete multi-agent incident response platform

If you have the local repo checked out, the triage system lives at akka-spovs/agentic-triage and includes both the MCP implementation and a 5‑agent setup.

Prerequisites

Before starting, ensure you have:

JDK 21 (Akka Java SDK requires Java 21)
Maven 3.8+ for dependency management
VS Code or Claude Desktop for testing
Basic familiarity with Java annotations and Maven
Understanding of MCP concepts from previous posts in this series

Architecture Overview

The Akka MCP implementation follows a microservices-oriented architecture:

┌─────────────────────────────────────┐
│  Triage Service (port 9100)         │
│                                     │
│  EvidenceAgent uses:                │
│  RemoteMcpTools.fromService(        │
│    "evidence-tools"                 │
│  )                                  │
└──────────────┬──────────────────────┘
               │
               │ Service Discovery
               │ (dev-mode)
               ↓
┌─────────────────────────────────────┐
│  Evidence Tools Service (port 9200) │
│                                     │
│  @McpEndpoint                       │
│  - fetch_logs                       │
│  - query_metrics                    │
│  - correlate_evidence               │
│  - kb://runbooks/{service}          │
└─────────────────────────────────────┘
               │
               │ JSON-RPC 2.0
               │ HTTP POST /mcp
               ↓
┌─────────────────────────────────────┐
│  External MCP Clients               │
│  - Claude Desktop                   │
│  - VS Code / GitHub Copilot         │
│  - Other MCP clients                │
└─────────────────────────────────────┘

Quick Start (Local Dev)

Below are generic steps; adapt paths to your repo layout.

Build and run the Evidence Tools MCP service (HTTP /mcp):
- Maven: mvn -q -DskipTests exec:java (if configured), or mvn package && java -jar target/*-all.jar
- Gradle: ./gradlew run or ./gradlew installDist && ./build/install/<app>/bin/<app>

Verify the MCP endpoint exposes capabilities (example HTTP POST):

curl -sS http://localhost:9200/mcp \
  -H 'Content-Type: application/json' \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/list","params":{}}'

Point your agents to the service (Akka): use RemoteMcpTools.fromService("evidence-tools") in your EvidenceAgent.
Optional: Integrate with Claude Desktop by launching the service via its config (see .NET post for Claude config template).

Step 1: Project Setup

Maven Configuration

Create a new Maven project with the Akka Java SDK parent:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>io.akka</groupId>
        <artifactId>akka-javasdk-parent</artifactId>
        <version>3.5.4</version>
    </parent>

    <groupId>com.example.evidence</groupId>
    <artifactId>agenticai-triage-mcp-tools</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>AgenticAI Triage MCP Tools</name>
    <description>MCP service for incident triage evidence gathering</description>
</project>

The akka-javasdk-parent POM provides all necessary dependencies including:

Akka HTTP server
MCP protocol support
JSON serialization (Jackson)
Service discovery
Logging infrastructure

Service Configuration

Create src/main/resources/application.conf:

# Service identification (critical for service discovery)
akka.javasdk.dev-mode {
  service-name = "evidence-tools"  # Must match RemoteMcpTools.fromService("evidence-tools")
  http-port = 9200  # Unique port for this service
}

# Logging configuration
akka.loglevel = "INFO"
loggers = ["akka.event.slf4j.Slf4jLogger"]
logging-filter = "akka.event.slf4j.Slf4jLoggingFilter"

# HTTP server timeouts
akka.http.server {
  request-timeout = 60s
  idle-timeout = 120s
}

Key configuration points:

service-name: Used by service discovery to locate this MCP server
http-port: The port where the MCP endpoint will be available
Timeouts are important for long-running tool calls

Step 2: Building the MCP Endpoint

Let’s build the MCP endpoint incrementally, starting with the basic structure and adding tools one by one. This approach will help you understand each component clearly.

Note: The complete implementation is available on GitHub . Here we’ll walk through the key parts step by step.

Step 2.1: Create the Basic MCP Endpoint Class

First, create the file src/main/java/com/pradeepl/evidence/EvidenceToolsEndpoint.java with the basic endpoint structure:

package com.pradeepl.evidence;

import akka.javasdk.annotations.Acl;
import akka.javasdk.annotations.Description;
import akka.javasdk.annotations.mcp.McpEndpoint;
import akka.javasdk.annotations.mcp.McpTool;

import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.node.ObjectNode;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

@Acl(allow = @Acl.Matcher(principal = Acl.Principal.ALL))
@McpEndpoint(serverName = "evidence-tools", serverVersion = "1.0.0")
public class EvidenceToolsEndpoint {

    private static final Logger logger = LoggerFactory.getLogger(EvidenceToolsEndpoint.class);
    private static final ObjectMapper mapper = new ObjectMapper();

    // Tools will be added here
}

Understanding the Annotations:

@McpEndpoint(serverName = "evidence-tools", serverVersion = "1.0.0")
- Declares this class as an MCP server endpoint
- serverName: Identifier used by clients and service discovery (must match the service-name in application.conf)
- serverVersion: Version information exposed to clients via the MCP protocol
- Akka automatically creates an HTTP endpoint at /mcp that implements JSON-RPC 2.0
@Acl(allow = @Acl.Matcher(principal = Acl.Principal.ALL))
- Access Control List that allows all clients to access this endpoint
- In production, you’d restrict this to authenticated principals
- Example: @Acl(allow = @Acl.Matcher(principal = Acl.Principal.INTERNET)) for internet-facing endpoints

Step 2.2: Add Your First MCP Tool - fetch_logs

Understanding MCP Tools vs Resources: If you’re new to MCP concepts, review the fundamentals in our .NET MCP post which explains tools (executable functions) and resources (data access). The key difference: Tools are functions that AI agents can invoke to perform actions or computations, while Resources provide URI-based access to data or documents.

Now let’s add our first tool. Add this method to the EvidenceToolsEndpoint class:

@McpTool(
    name = "fetch_logs",
    description = "Fetch logs from the agentic AI triage system services. Returns recent log lines with automatic error analysis and anomaly detection."
)
public String fetchLogs(
        @Description("Service name to fetch logs from (e.g., payment-service, checkout-service)")
        String service,
        @Description("Number of log lines to fetch (default: 200)")
        int lines
) {
    logger.info("📝 MCP Tool: fetch_logs called - Service: {}, Lines: {}", service, lines);

    try {
        // Read log file from classpath resources
        String fileName = String.format("logs/%s.log", service);
        InputStream inputStream = getClass().getClassLoader().getResourceAsStream(fileName);

        if (inputStream == null) {
            ObjectNode errorResponse = mapper.createObjectNode();
            errorResponse.put("error", String.format("No log file found for service: %s", service));
            errorResponse.put("service", service);
            return mapper.writeValueAsString(errorResponse);
        }

        String fullLogs = new String(inputStream.readAllBytes(), StandardCharsets.UTF_8);
        String[] allLines = fullLogs.split("\n");

        // Return last N lines (most recent logs)
        int startIndex = Math.max(0, allLines.length - lines);
        int actualLines = Math.min(lines, allLines.length);

        StringBuilder recentLogs = new StringBuilder();
        for (int i = startIndex; i < allLines.length; i++) {
            recentLogs.append(allLines[i]).append("\n");
        }

        // Build structured JSON response
        ObjectNode response = mapper.createObjectNode();
        response.put("logs", recentLogs.toString());
        response.put("service", service);
        response.put("linesReturned", actualLines);
        response.put("linesRequested", lines);

        return mapper.writerWithDefaultPrettyPrinter().writeValueAsString(response);

    } catch (Exception e) {
        logger.error("📝 Error in fetch_logs", e);
        return String.format("{\"error\":\"Failed to fetch logs: %s\"}", e.getMessage());
    }
}

Understanding @McpTool:

@McpTool marks a method as an MCP tool that clients can invoke
name: The identifier clients use to call this tool (e.g., "fetch_logs")
description: Critical for AI models - describes what the tool does and when to use it
Method parameters automatically become tool arguments in the MCP protocol
@Description on parameters helps AI understand what each argument is for
Return value becomes the tool’s response to the client (typically JSON string)

This tool fetches service logs from the classpath, returns the most recent N lines, and wraps them in a structured JSON response.

Step 2.3: Add Two More Tools

Following the same pattern, add two additional tools to the endpoint class:

query_metrics - Queries performance metrics (error rates, latency, CPU usage, etc.) based on a metrics expression and time range. It reads from pre-configured metrics JSON files and returns parsed data with insights.

@McpTool(name = "query_metrics", description = "Query performance metrics...")
public String queryMetrics(
    @Description("Metrics expression") String expr,
    @Description("Time range") String range
) {
    // Implementation: reads metrics JSON files, formats output
    // See full code on GitHub
}

correlate_evidence - Analyzes relationships between log findings and metric findings to identify temporal patterns, dependency failures, and resource exhaustion correlations. This demonstrates a tool that combines data from multiple sources.

@McpTool(name = "correlate_evidence", description = "Correlate findings from logs and metrics...")
public String correlateEvidence(
    @Description("Description of log findings") String logFindings,
    @Description("Description of metric findings") String metricFindings
) {
    // Implementation: analyzes correlations, timeline alignment
    // See full code on GitHub
}

Key Points:

Multiple tools can coexist in the same endpoint class
Each tool is independent with its own name, description, and parameters
Helper methods don’t need annotations - they’re just regular Java methods
The complete implementation with error handling is in the GitHub repository

Step 2.4: Add an MCP Resource - Service Runbooks

MCP Resources vs Tools: As explained in our earlier posts , MCP defines two distinct concepts:

Tools: Executable functions that perform actions or computations (like fetch_logs, query_metrics)
Resources: URI-based access to data, documents, or content (like runbooks, configuration files, documentation)

Resources are ideal for providing static or semi-static information that agents can reference. Let’s add a resource for service runbooks:

import akka.javasdk.annotations.mcp.McpResource;

@McpResource(
    uriTemplate = "kb://runbooks/{serviceName}",
    name = "Service Runbook",
    description = "Get troubleshooting runbook for a specific service",
    mimeType = "text/markdown"
)
public String getRunbook(String serviceName) {
    logger.info("📚 MCP Resource: getRunbook called - Service: {}", serviceName);

    try {
        String path = String.format("knowledge_base/%s-runbook.md", serviceName);
        InputStream in = getClass().getClassLoader().getResourceAsStream(path);

        if (in == null) {
            return String.format("# Runbook Not Found\n\nNo runbook available for service: %s", serviceName);
        }

        return new String(in.readAllBytes(), StandardCharsets.UTF_8);

    } catch (Exception e) {
        logger.error("📚 Error in getRunbook", e);
        return String.format("# Error\n\nFailed to load runbook: %s", e.getMessage());
    }
}

Understanding @McpResource:

@McpResource exposes data through URI-based access (different from executable tools)
uriTemplate: URI pattern with variables (e.g., kb://runbooks/{serviceName})
- Clients can access: kb://runbooks/payment, kb://runbooks/checkout, etc.
mimeType: Content type of the resource (e.g., text/markdown, application/json)
Method parameters are extracted from the URI template variables
Resources are ideal for providing documentation, configuration, or reference data

Step 2 Complete: What We’ve Built

We’ve now created a complete MCP endpoint with multiple tools and resources. The full implementation with helper methods, error handling, log analysis, and metrics parsing is available in the GitHub repository .

Summary of components:

✅ MCP Endpoint with @McpEndpoint annotation and service discovery integration
✅ Three MCP Tools (executable functions):
- fetch_logs - Retrieves service logs with error analysis (shown in detail)
- query_metrics - Queries performance metrics and alerts
- correlate_evidence - Analyzes relationships between logs and metrics
✅ One MCP Resource (URI-based data access):
- kb://runbooks/{serviceName} - Access service troubleshooting runbooks
✅ HTTP Endpoint automatically exposed at /mcp with JSON-RPC 2.0
✅ Structured JSON responses for all tools
✅ Error handling and comprehensive logging

The pattern is clear: define the endpoint class, add @McpTool methods for executable functions, and add @McpResource methods for data access. Akka handles the rest - HTTP server, JSON-RPC protocol, service discovery, and client integration.

Step 3: Running the MCP Server

Build and Run

mvn compile exec:java

Look for startup logs:

INFO  akka.runtime.DiscoveryManager - Akka Runtime started at 127.0.0.1:9200
INFO  ... - MCP endpoint component [...EvidenceToolsEndpoint], path [/mcp]

Your MCP server is now running and accessible at http://localhost:9200/mcp

Testing with curl

Test the MCP endpoint directly:

# List available tools
curl -s http://localhost:9200/mcp \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","id":"1","method":"tools/list","params":{}}' \
  | jq

# Call the fetch_logs tool
curl -s http://localhost:9200/mcp \
  -H "Content-Type: application/json" \
  -d '{
    "jsonrpc":"2.0",
    "id":"2",
    "method":"tools/call",
    "params":{
      "name":"fetch_logs",
      "arguments":{"service":"payment-service","lines":100}
    }
  }' | jq

Step 4: Integration with MCP Clients

Now that our MCP server is running, let’s integrate it with various MCP clients. The beauty of MCP is that the same server can be consumed by different clients - Claude CLI, Claude Desktop, VS Code, and even other Akka agents.

Using Claude CLI

The simplest way to test your MCP server is with the Claude CLI tool. First, create an MCP configuration file in your project directory.

Create claude-mcp-config.json in your project root:

{
  "mcpServers": {
    "evidence-tools": {
      "command": "node",
      "args": [
        "-e",
        "const http = require('http'); process.stdin.on('data', data => { const req = http.request('http://localhost:9200/mcp', {method: 'POST', headers: {'Content-Type': 'application/json'}}, res => { let body = ''; res.on('data', chunk => body += chunk); res.on('end', () => console.log(body)); }); req.write(data); req.end(); });"
      ],
      "env": {}
    }
  }
}

This configuration uses a Node.js one-liner to bridge STDIO (which Claude CLI uses) to our HTTP endpoint at http://localhost:9200/mcp. This is a simple demo bridge; for production scenarios, prefer native transports supported by your SDK (e.g., SSE or WebSockets) or a hardened proxy.

Now you can use Claude CLI with your MCP tools:

# Make sure your MCP server is running (mvn compile exec:java)

# Start Claude CLI with your MCP configuration
claude --mcp-config claude-mcp-config.json

# In the Claude session, you can now use the tools:
# "Fetch logs for payment-service and analyze the errors"
# "Query error_rate metrics for the last 1 hour"
# "Correlate the evidence from logs and metrics to identify the root cause"

What happens:

Claude CLI loads your MCP configuration
It discovers the fetch_logs, query_metrics, and correlate_evidence tools
When you ask questions, Claude can intelligently decide to use these tools
The tools call your Akka MCP server via HTTP
Results are returned to Claude for analysis

Example Session:

You: Investigate the payment service issues

Claude: I'll help you investigate the payment service. Let me start by fetching
the recent logs and checking the error metrics.

[Uses fetch_logs tool with service="payment-service", lines=200]
[Uses query_metrics tool with expr="error_rate", range="1h"]

Based on the evidence gathered:

1. **Log Analysis**: Found 8 errors in recent logs, including:
   - Payment gateway timeouts (3 occurrences)
   - Database connection refused errors (3 occurrences)

2. **Metrics Analysis**:
   - Error rate: 15.3% (elevated, threshold: 5.0%)
   - 342 total errors in the last hour
   - Primary issues: connection timeouts (156), database errors (89)

Let me correlate these findings...

[Uses correlate_evidence tool with findings from logs and metrics]

**Root Cause Assessment**: The timeline shows payment gateway timeouts started
at 14:28:45, followed by database connection failures at 14:29:15. This suggests
a cascading failure pattern where gateway issues exhausted the connection pool...

Claude Desktop Integration

For persistent integration with Claude Desktop, create or edit the configuration file:

macOS: ~/Library/Application Support/Claude/claude_desktop_config.json Windows: %APPDATA%/Claude/claude_desktop_config.json

Use the same configuration as claude-mcp-config.json above. Restart Claude Desktop after editing the file.

VS Code / GitHub Copilot Integration

Create .vscode/mcp.json in your project:

{
  "servers": {
    "evidence-tools": {
      "type": "stdio",
      "command": "node",
      "args": [
        "-e",
        "const http = require('http'); process.stdin.on('data', data => { const req = http.request('http://localhost:9200/mcp', {method: 'POST', headers: {'Content-Type': 'application/json'}}, res => { let body = ''; res.on('data', chunk => body += chunk); res.on('end', () => console.log(body)); }); req.write(data); req.end(); });"
      ]
    }
  }
}

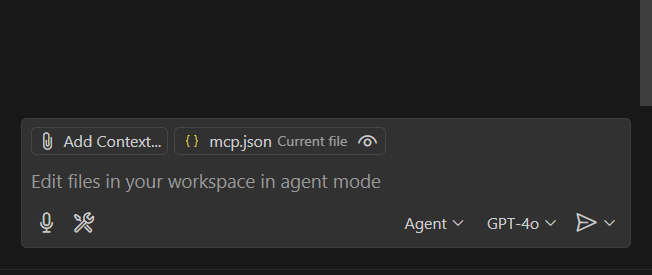

Reload VS Code, open Copilot Chat in Agent mode, and the evidence tools will be available.

Step 5: Integration with Akka Agents

One of Akka’s unique features is seamless integration with its agent system. Here’s how another Akka service can consume these MCP tools:

package com.example.triage;

import akka.javasdk.agent.Agent;
import akka.javasdk.annotations.ComponentId;
import akka.javasdk.annotations.Description;
import akka.javasdk.client.RemoteMcpTools;

@ComponentId("evidence-agent")
public class EvidenceAgent extends Agent {

    @Description("Gather evidence from logs and metrics")
    public Effect<String> gatherEvidence(String incidentId, String serviceName) {
        // Reference the remote MCP service by its service-name
        var mcpTools = RemoteMcpTools.fromService("evidence-tools");

        // Agents can now use these tools as part of their workflow
        return effects()
            .updateState(state.withMcpTools(mcpTools))
            .reply("Evidence gathering configured for " + serviceName);
    }
}

The agent discovers the evidence-tools service automatically in dev-mode using the service-name from application.conf. In production, this works through Kubernetes service discovery or configured endpoints.

Key Advantages of Akka’s MCP Implementation

Compared to the .NET and Java SDK implementations from previous posts, Akka’s approach offers:

1. Declarative vs. Imperative

Traditional MCP SDK (Java):

var getLogsTool = new McpServerFeatures.SyncToolSpecification(
    new McpSchema.Tool("get_logs", "Return logs", schemaJson),
    (exchange, arguments) -> {
        // Handler implementation
    }
);
server.tools(getLogsTool);

Akka MCP:

@McpTool(name = "fetch_logs", description = "Fetch logs from services")
public String fetchLogs(String service, int lines) {
    // Implementation
}

The Akka approach is more concise and maintainable.

2. Built-in HTTP Server

Traditional MCP servers require external HTTP servers (Jetty, Kestrel). Akka includes its HTTP server, automatically exposing your endpoint at /mcp.

3. Service Discovery

Akka’s service discovery allows distributed services to find and consume MCP tools without hardcoded URLs:

// Automatically discovers service in dev-mode or production
RemoteMcpTools.fromService("evidence-tools")

4. Resources Support

Akka’s @McpResource provides URI-based access to data:

@McpResource(uriTemplate = "kb://runbooks/{serviceName}", ...)
public String getRunbook(String serviceName) {
    // Return runbook content
}

Clients can access this as: kb://runbooks/payment

5. Production-Grade Features

Event Sourcing: Tools can interact with event-sourced entities
CQRS: Separate read/write models for tool data
Clustering: Deploy multiple instances with built-in clustering
Resilience: Circuit breakers, timeouts, and retry policies
Observability: Built-in metrics, tracing, and logging

Deployment Considerations

Local Development

mvn compile exec:java

Services discover each other via localhost and configured ports.

Production Deployment

Containerize the service:

mvn clean package
docker build -t evidence-tools:1.0.0 .

Deploy to Kubernetes with service discovery:

apiVersion: v1
kind: Service
metadata:
  name: evidence-tools
spec:
  selector:
    app: evidence-tools
  ports:
    - protocol: TCP
      port: 9200
      targetPort: 9200

Configure service discovery:

akka.javasdk.production {
  service-discovery {
    method = "kubernetes-api"
  }
}

Akka automatically discovers services via Kubernetes DNS.

Multi-Instance Deployment

Akka’s clustering allows multiple instances:

# Deploy 3 replicas
kubectl scale deployment evidence-tools --replicas=3

Requests are load-balanced automatically across instances.

Troubleshooting

Service Not Found

Issue: Akka agent can’t find MCP service

Solution:

Verify service-name in application.conf matches RemoteMcpTools.fromService("...")
Check both services are running
Ensure both are in dev-mode or both in production mode

Check logs for service registration:

INFO akka.runtime.DiscoveryManager - Service 'evidence-tools' registered

Tools Not Appearing

Issue: MCP clients don’t see tools

Solution:

Verify @McpEndpoint annotation is present
Check @McpTool methods are public
Ensure server started successfully (check /mcp endpoint)
Test with curl to verify tools are listed

Connection Issues

Issue: Client can’t connect to MCP endpoint

Solution:

Verify port is not blocked by firewall
Check service is listening: netstat -an | grep 9200
Verify HTTP endpoint: curl http://localhost:9200/mcp
Check akka.http.server timeout settings

What’s Next?

Your Akka MCP server is production-ready. Consider these enhancements:

Authentication: Add JWT or API key authentication using Akka’s ACL system
Event Sourcing: Persist tool invocations for audit trails
Workflow Integration: Combine MCP tools with Akka workflows
Advanced Resources: Expose streaming data, database views, or real-time feeds
Multi-Tenancy: Support multiple tenants with isolated data
Observability: Add OpenTelemetry tracing for tool calls
Rate Limiting: Protect tools with Akka’s throttling capabilities

Conclusion

Akka’s MCP implementation brings enterprise-grade capabilities to MCP server development. The annotation-based approach is more concise than manual tool registration, the built-in HTTP server simplifies deployment, and service discovery enables true microservices architectures.

Key Takeaways

Declarative Tools: @McpTool provides cleaner code than manual registration
HTTP First: Built-in JSON-RPC endpoint at /mcp
Service Discovery: Seamless integration across distributed services
Agent Integration: Direct consumption by Akka agents for AI workflows
Production Ready: Clustering, resilience, and observability built-in
Resource Support: URI-based data access via @McpResource

Comparison Summary

Feature	.NET SDK	Java SDK	Akka SDK
Tool Definition	Attributes	Manual Registration	Annotations
HTTP Server	Kestrel	Jetty	Akka HTTP (built-in)
Transport	STDIO, SSE	STDIO, HTTP	HTTP/JSON-RPC
Service Discovery	Manual	Manual	Automatic
Agent Integration	External	External	Built-in
Clustering	Manual	Manual	Built-in
Production Features	ASP.NET Core	Spring/Jakarta EE	Akka Platform

Akka’s approach is particularly well-suited for:

Microservices architectures with distributed MCP tools
AI agent systems needing tool orchestration
Enterprise applications requiring production-grade features
Event-driven systems with CQRS and event sourcing

In the next post, we’ll explore building a complete agentic workflow that orchestrates multiple MCP tools across distributed services using Akka’s workflow engine.

Resources

About Pradeep Loganathan

My technical notes and thoughts on software engineering, programming, and life.

Introduction

What Makes Akka’s MCP Implementation Different?

What You’ll Build

The Bigger Picture: Agentic AI Triage System

Where MCP Tools Fit In

What This Tutorial Builds

From Sample to Production

Prerequisites

Architecture Overview

Quick Start (Local Dev)

Step 1: Project Setup

Maven Configuration

Service Configuration

Step 2: Building the MCP Endpoint

Step 2.1: Create the Basic MCP Endpoint Class

Step 2.2: Add Your First MCP Tool - fetch_logs

Step 2.3: Add Two More Tools

Step 2.4: Add an MCP Resource - Service Runbooks

Step 2 Complete: What We’ve Built

Step 3: Running the MCP Server

Build and Run

Testing with curl

Step 4: Integration with MCP Clients

Using Claude CLI

Claude Desktop Integration

VS Code / GitHub Copilot Integration

Step 5: Integration with Akka Agents

Key Advantages of Akka’s MCP Implementation

1. Declarative vs. Imperative

2. Built-in HTTP Server

3. Service Discovery

4. Resources Support

5. Production-Grade Features

Deployment Considerations

Local Development

Production Deployment

Multi-Instance Deployment

Troubleshooting

Service Not Found

Tools Not Appearing

Connection Issues

What’s Next?

Conclusion

Key Takeaways

Comparison Summary

Resources

About Pradeep Loganathan

Connect with me
